MINI PROJECTOR
U9P
ANDROID PICO PROJECTOR
Special Function

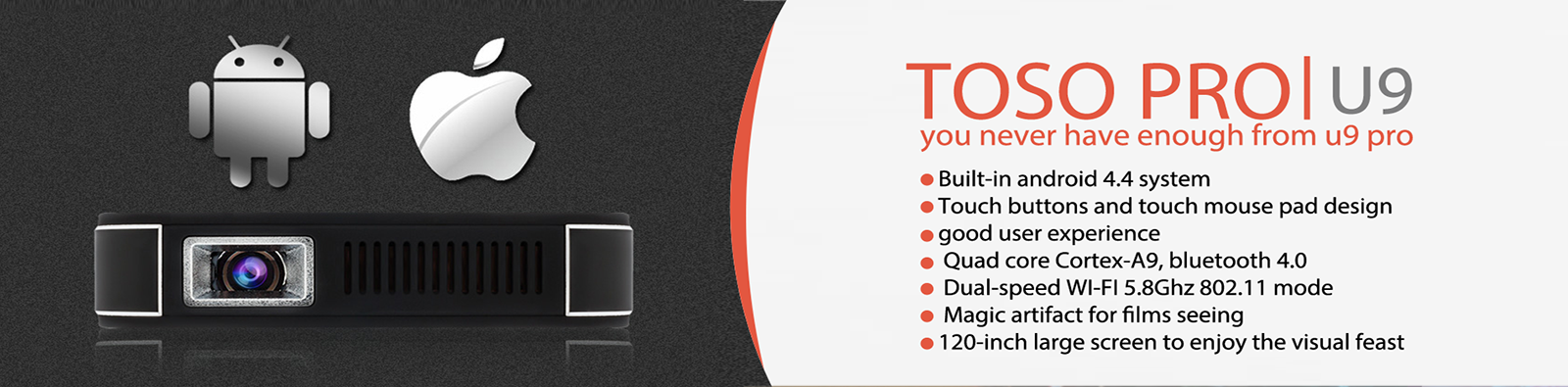

- Built-in android 4.4 system
- Touch buttons and touch mouse pad design,good user experience
- Quad core Cortex-A9, bluetooth 4.0, Dual-speed WI-FI 5.8Ghz 802.11 mode
- Magic artifact for films seeing, 120-inch large screen to enjoy the visual feast

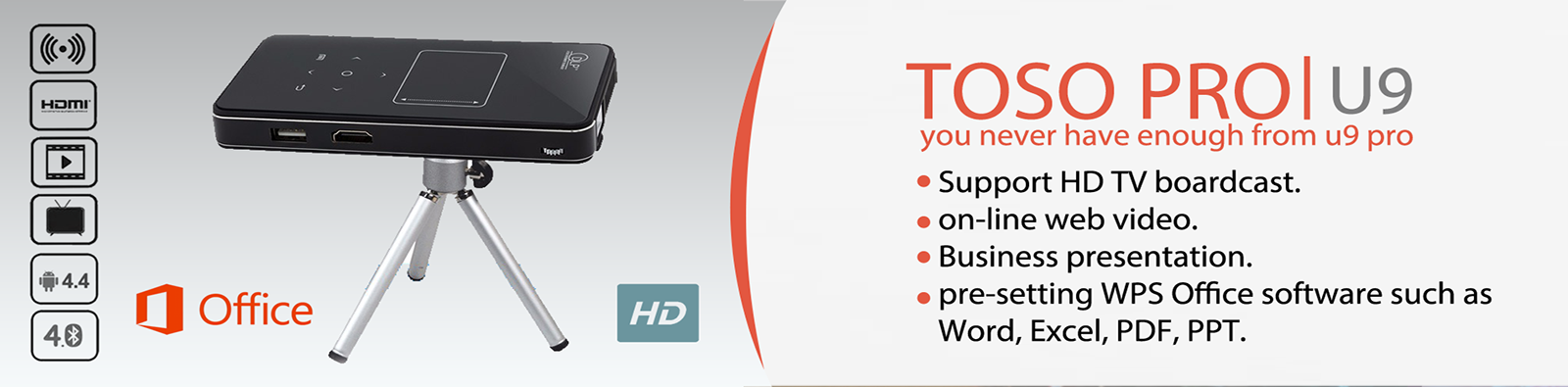

- Support HD TV boardcast, on-line web video.
- Business presentation, pre-setting WPS Office software such as Word, Excel, PDF, PPT.
- Support the Mirrioring Function with computer, iPhone, Android phone wirelessly.

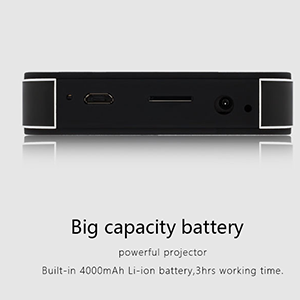

- Built-in rechargeable lithium polymer battery, can be used under the enviroment of power absence.

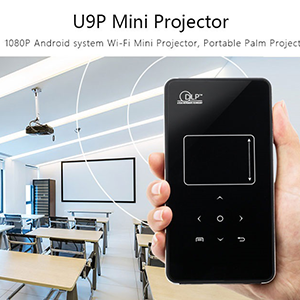

Picture for MINI PROJECTOR U9P
Specifications
CPU Chip
Quad-core Rockchip RK3188,ARM Cortex-A9 architecture,28nm low power consumption technology
GPU Image Processor
Quad-Core Mali 400 MP4 533Mhz
RAM
DDR3 1GB
ROM Nand Flash
8GB high-speed Nand Flash(16GB optional)
WI-FI
dual-band WI-FI module for high-speed surf the internet and the maximum speed up to 65Mbps under 802.11N mode,
Bluetooth
BT 4.0 Broadcom BCM40183,the maximum speed arrives 3Mbps
LED Lamp
DLP R.G.B Ture Color
Bright
250LM
Native Resolution
854*480
Maximum Resolution (Compatible)
1920*1080 HD1080P
Lamp Life
>30000 hours
Contrast Ratio
2000:1( rate)
Screen Aspect Ratio
16:9 Broadband(Compatible 4:3)
Power Interface DC3.5
DC3.5 input AC:100-240V,output DC:9V/2A
Project Size
Max 120 inch (1M--37.8" )
Focal Length Adjustment
Manual Adjust
HDMI Interface
HDMI 2.0,support HDMI output
USB Interface
USB Type A ;support U disk input, playing vedio,music,file, pictures etc.
Micro SD Interface
Connect to PC, OTG cable for U disk
Micro USB
Connect to PC, OTG cable for U disk
Power Interface DC3.5
DC3.5 input AC:100-240V,output DC:9V/2A
Speakers
Build-in 8Ω1W*2pcs stereo speakers
Battery
Built-in high capacity rechargeable lithium battery
Wireless mouse and keyboard
Support 2.7G wireless mouse and keyboard
Storage
Support Micro SD(TF) to expanse capacity to 32GB
File Browser
Preset WPS office software, accessing to browse the Word, Excel, PDF, PPT... Etc.
Wireless Screen Push
Support apple AirPlay Wireless screen synchronization
and Android Miracast Wireless screen synchronization
HDMI HD
HDMI 2.0, support 720p,1080p HD
Audio Format
MP1、MP2、MP3、WMA、WAV、OGG、OGA、APE、FLAC、AAC、M4A、3GPP
Video Decode Format
MPEG1/2/4,H.264/AVC,MVC,VC1,XVID,DIVX,RealVideo
8/9/10,VP6,MP4,MOV,MKV
Image Format
JPEG/BMP/GIF/PNG
Menu Language
Support simplified Chinese, traditional Chinese, English, Russian, French, German, Spanish, Portuguese, Arabic, Italian, Dutch, Korean, Japanese, and other languages
Product Size
136mm*80mm*16.5mm
Product Weight

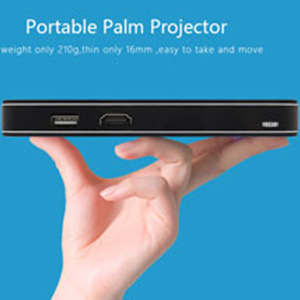

210g
Gross Weight
595g
Accessories
Projector*1，DC adaptor*1，USB cable*1，USB OTG Cable*1，Tripod*1，User manual*1,Mouse*1
Packing Box Size
153.6*153.6*71 mm
Using Environment
Projector belongs to the refraction of light display, which is not the same as TV backlight display.Please do not use in bright environment otherwise can not experience its perfect operation.
