| model |
P10-II |
| product description |
DLP projector |
| picture |
 |
| Projection Specification |
| Projection Technology |
DLP(0.2"DMD) |
| Projection Light |
RGB LED OSRAM Q6 |
| Light Life |
Up to 20,000 hours |
| Light Luminance |
150 Lumens |
| Light Type |
LED |
| Standard Resolution |
WVGA 854*480 |
| Projection Area |
40-300 inch |
| Contrast |
500:1 |
| Projection Ratio |
1.4:1（31 inch@1M） |
| Distortion |
<1.5％ |
| Luminance Uniformity |
>85% |
| Projection Distance |
1-8m |
| Aspect Ratio |
16:10 |
| Focus mode |
Manual focus |
| Keystone Correction |
Vertical ±45 degree,Horizontal ±40 degree,Multi angle adjustment |
| Offset function |
100% |
| 3D |
Yes |
| System Parameters |
| Screen Mirror |
Airplay/MiraCast |
| OS |
Android 9.0 |
| CPU |
T972(Amlogic) |
| Basic Frequency |
Quad Core ARM Cortex-A55 CPU |
| GPU |
ARM Mali-G31 MP2 GPU |
| Buffer Memory |
2GB/4GB LPDDR4 |
| Memory |
16GB/32GB EMMC |
| WIFI |
2.4G/5G 802.11a/b/g/n/ac |
| Bluetooth |
BT 4.2 |
| Basic parameters |
| Built-in Battery |
9000MA(4500MA 7.4V) |
| Usage time |
work for about 2 hours |
| Video Support(up to 4k) |
VP9-10,H.265,H.264,MPEG-4,WMV/VC-1,MPEG-2,MPEG-1,RealVideo 8/9/10 etc. |
| Audio Support |
MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
| Image Support |
Supports variety of image formats browsing (jpg, png, bmp etc.） |
| Extended Storage |
Support TF Card and Hard Disk |
| Remote Control |
Support IR Remote |
| Built-in speaker |
one 2w speaker |
| Light machine Consumption |
11W |
| Whole Power Consumption |
16W |
| Power Performance |
AC100-240V,50/60Hz， DC 12V 3A |

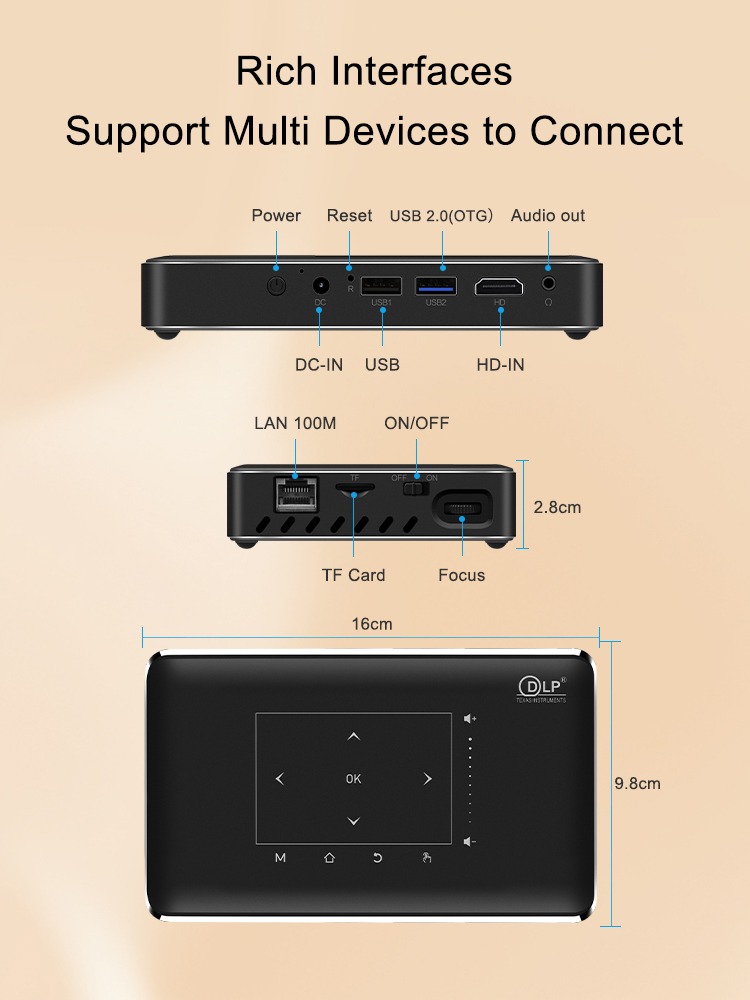

| Interface |
1*TF Card: Max 128GB |
| 1*HDMI: HDMI2.1 Input |
| 1*USB host + 1*USB OTG (HOST 2.0) |
| 1*Earphone: Audio output, 3.5mm joint (can connect with earphone or speaker box) |
| 1*Ethernet:100M |
| 1*TouchPAD |
| 1* DC input: DC 12V 3A |
| Package |
| Colour |
Gray + Metallic gray |
| Net weight |
468g |
| Dimension |
160*98*28mm |
| Gift Box weight |
965g |
| Gift Box Size |
206*129*84mm |
| Carton box weight |
20.5kg (20pcs) |
| Carton box size |
445*430*280mm |
