| model |
P11-II |
| product description |

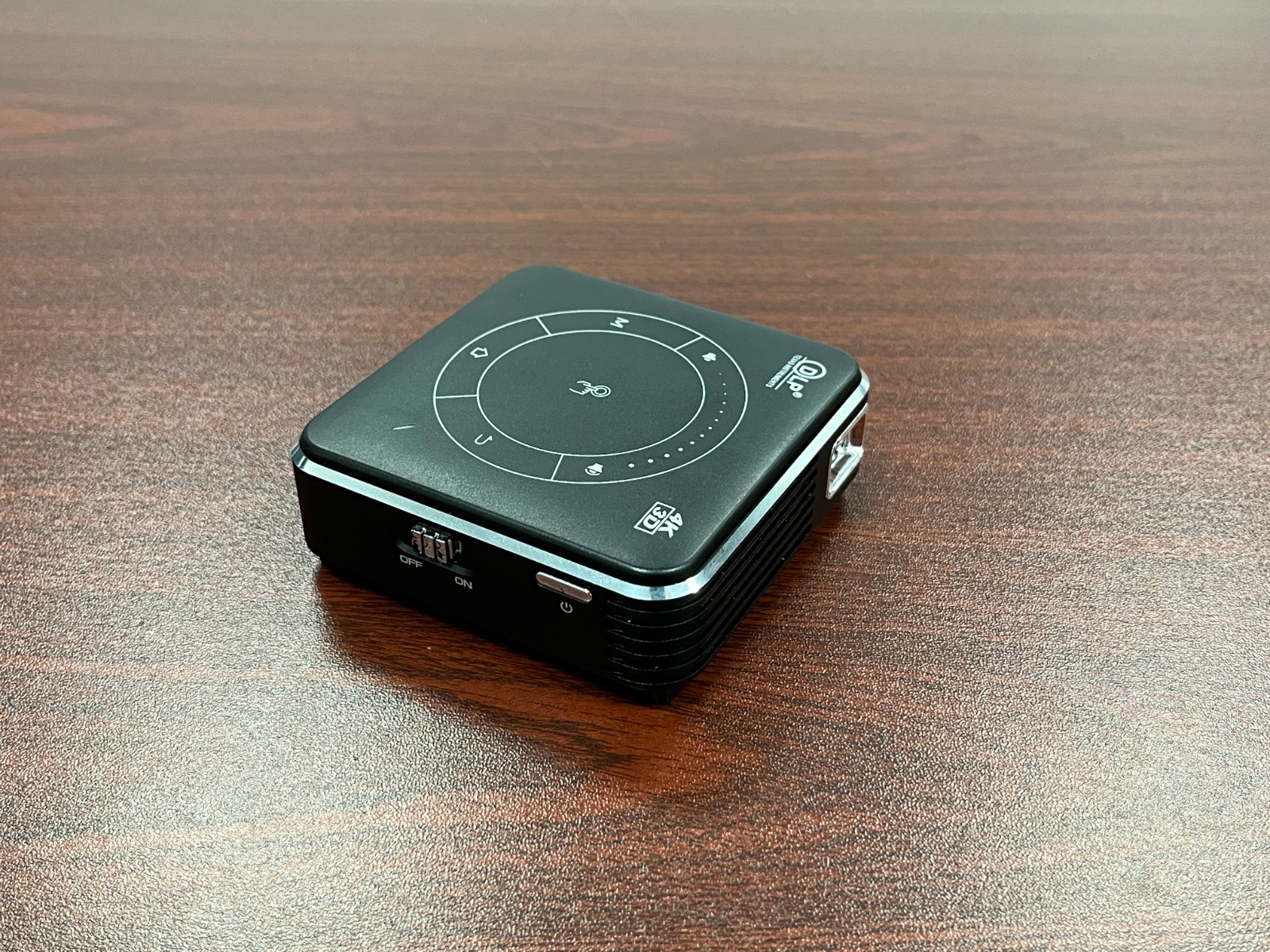

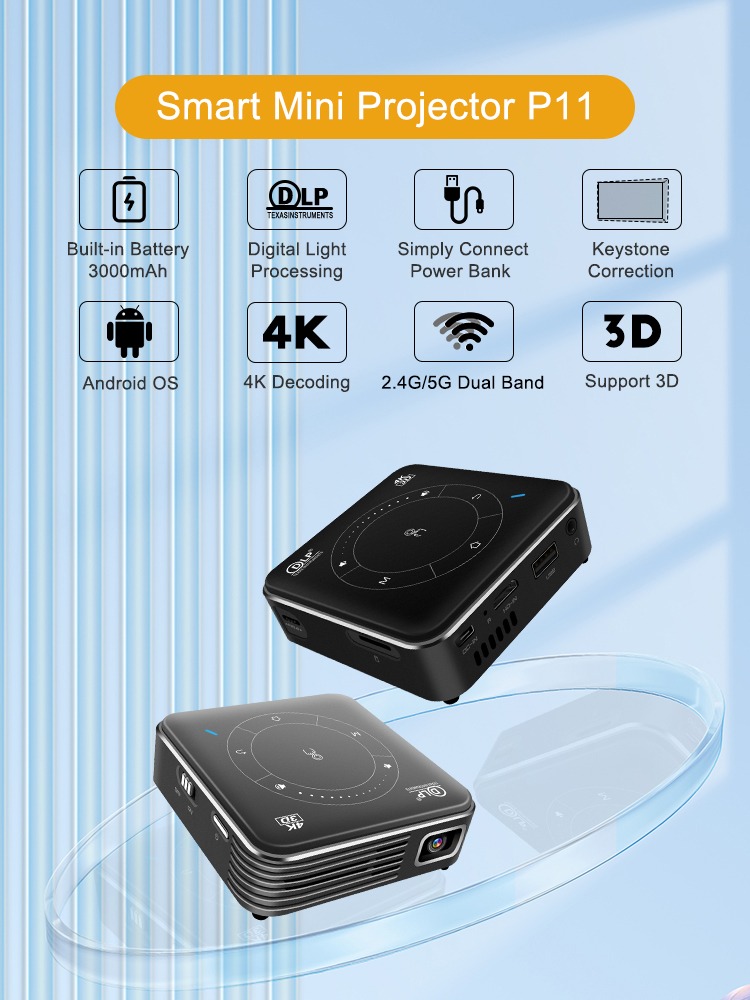

DLP Mini Pocket projector |
| picture |
 |
| Projection Specification |
| Projection Technology |
DLP(0.2"DMD) |
| Projection Light |
RGB LED OSRAM Q6 |
| Light Life |
Up to 20,000 hours |
| Light Luminance |
55 Lumens |
| Light Type |
LED |
| Standard Resolution |
WVGA 854*480 |
| Projection Area |
30-120 inch |
| Contrast |
500:1 |
| Projection Ratio |
1.35:1(33.5 inch@1M) |
| Distortion |
<1.0％ |
| Luminance Uniformity |
>85% |
| Projection Distance |
1-5m |
| Aspect Ratio |
16:9 |
| Focus mode |
Manual focus |
| Keystone Correction |
Horizontal ±45°,Vertical ±40°,Multi angle adjustment |
| Offset function |
No |
| 3D |
Yes |
| System Parameters |
| Screen Mirror |
Airplay/MiraCastt |
| OS |
Android 9.0 |
| CPU |
T972(Amlogic) |
| Basic Frequency |
Quad Core ARM Cortex-A55 CPU |
| GPU |
ARM Mali-G31 MP2 GPU |
| Buffer Memory |
2GB/4GB LPDDR4 |
| Memory |
16GB/32GB EMMC |
| WIFI |
2.4G/5G 802.11a/b/g/n/ac |
| Bluetooth |
BT 5.2 |
| Basic parameters |
| Built-in Battery |
3000mAh 3.7V 11.1Wh |
| Usage time |
work for about 80 minutes |
| Video Support(up to 4k) |
VP9-10,H.265,H.264,MPEG-4,WMV/VC-1,MPEG-2,MPEG-1,RealVideo 8/9/10 etc. |
| Audio Support |
MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
| Image Support |
Supports variety of image formats browsing (jpg, png, bmp etc.） |
| Extended Storage |
Support TF Card and Hard Disk |
| Remote Control |
Support IR Remote |
| Built-in speaker |
one 1W speaker |
| Light machine Consumption |
3W |
| Whole Power Consumption |
8W |
| Power Performance |
AC100-240V，50/60Hz DC 5V 3A |

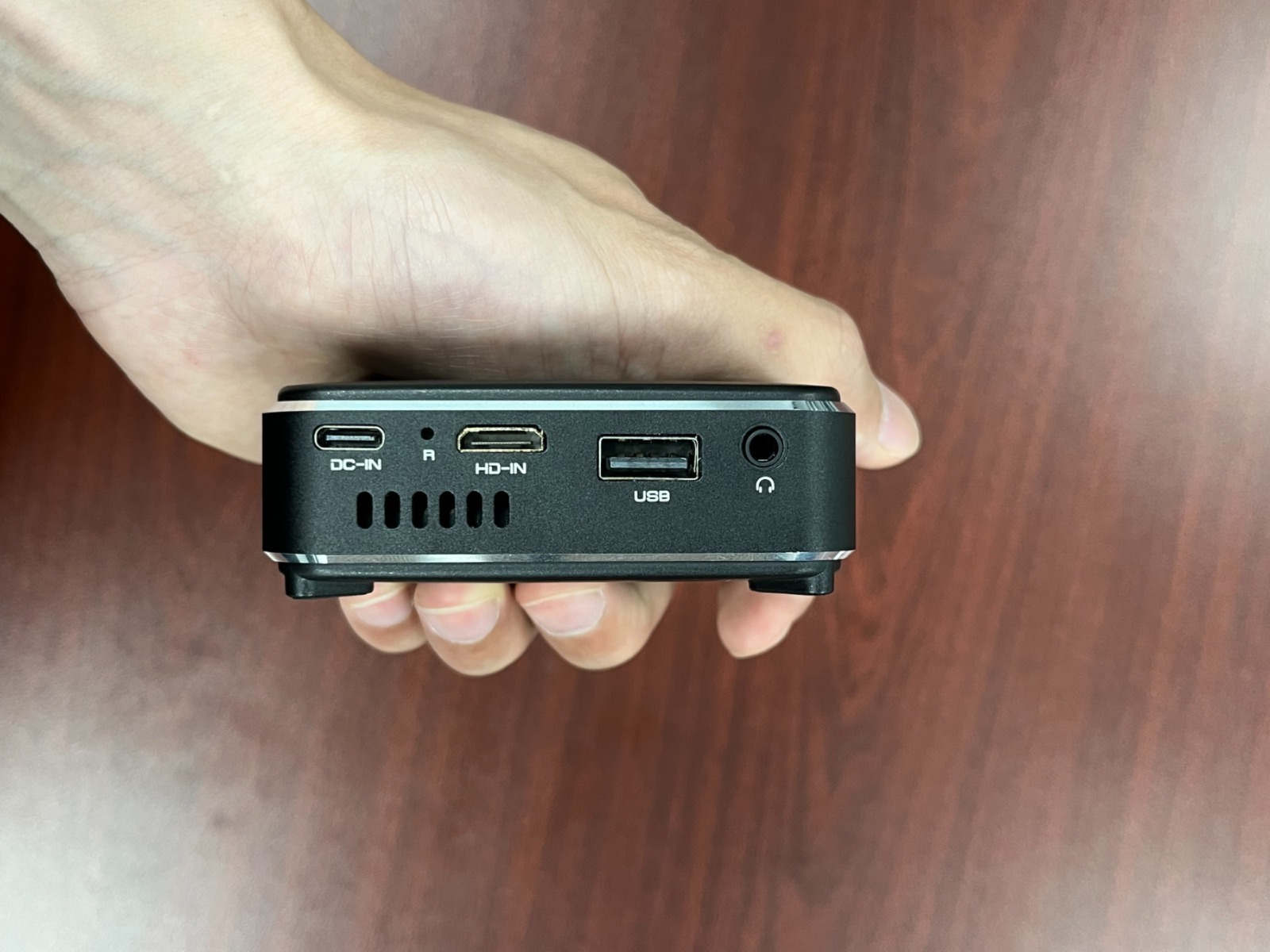

| Interface |
1*TF Card: Max 128GB |
| 1*HDMI: HDMI2.1 Input |
| 1*USB HOST |
| 1*Earphone: Audio output, 3.5mm joint (can connect with earphone or speaker box) |

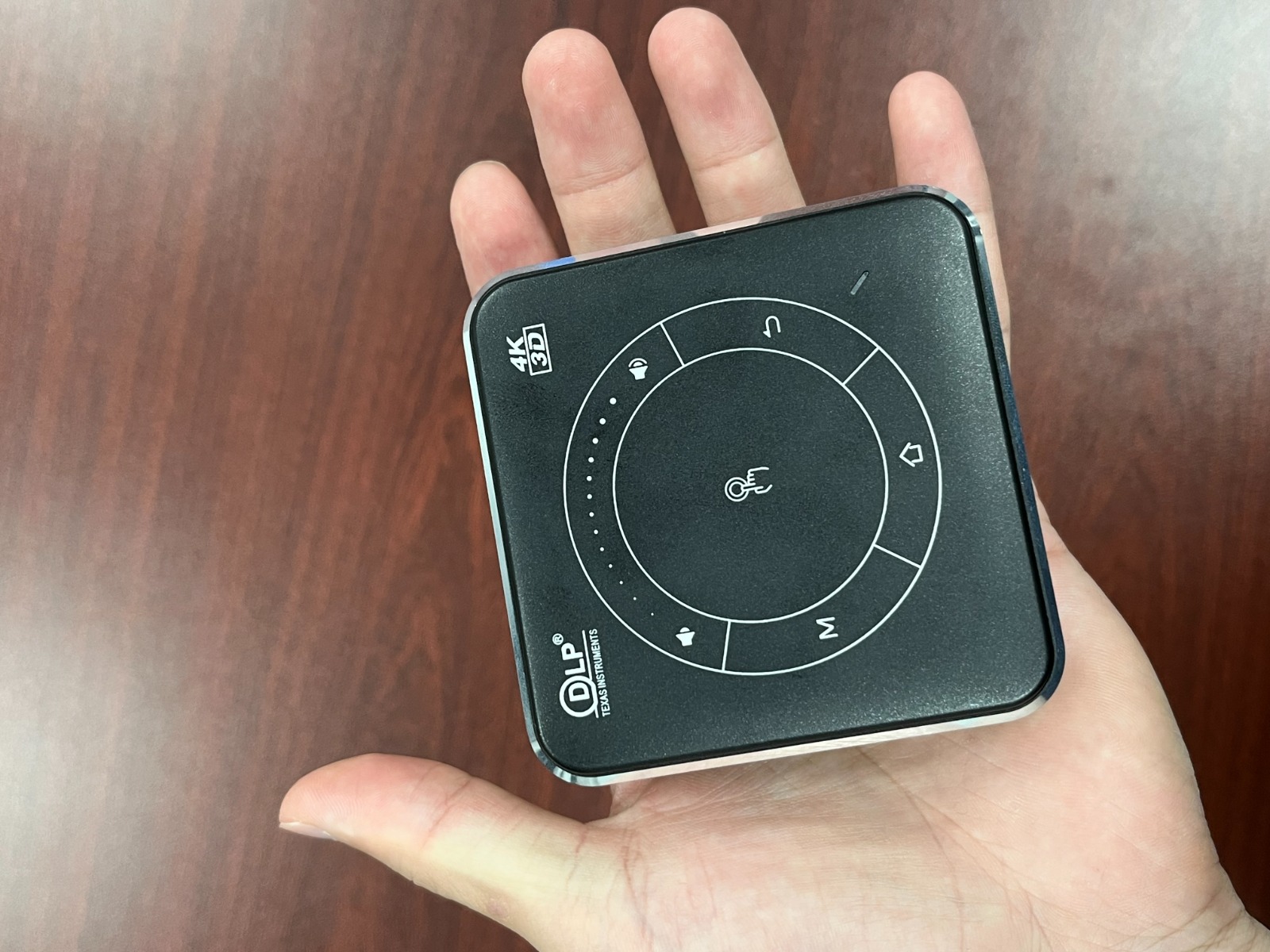

| 1*TouchPAD |
| 1* TYPE USB input: DC 5V 3A & OTG |

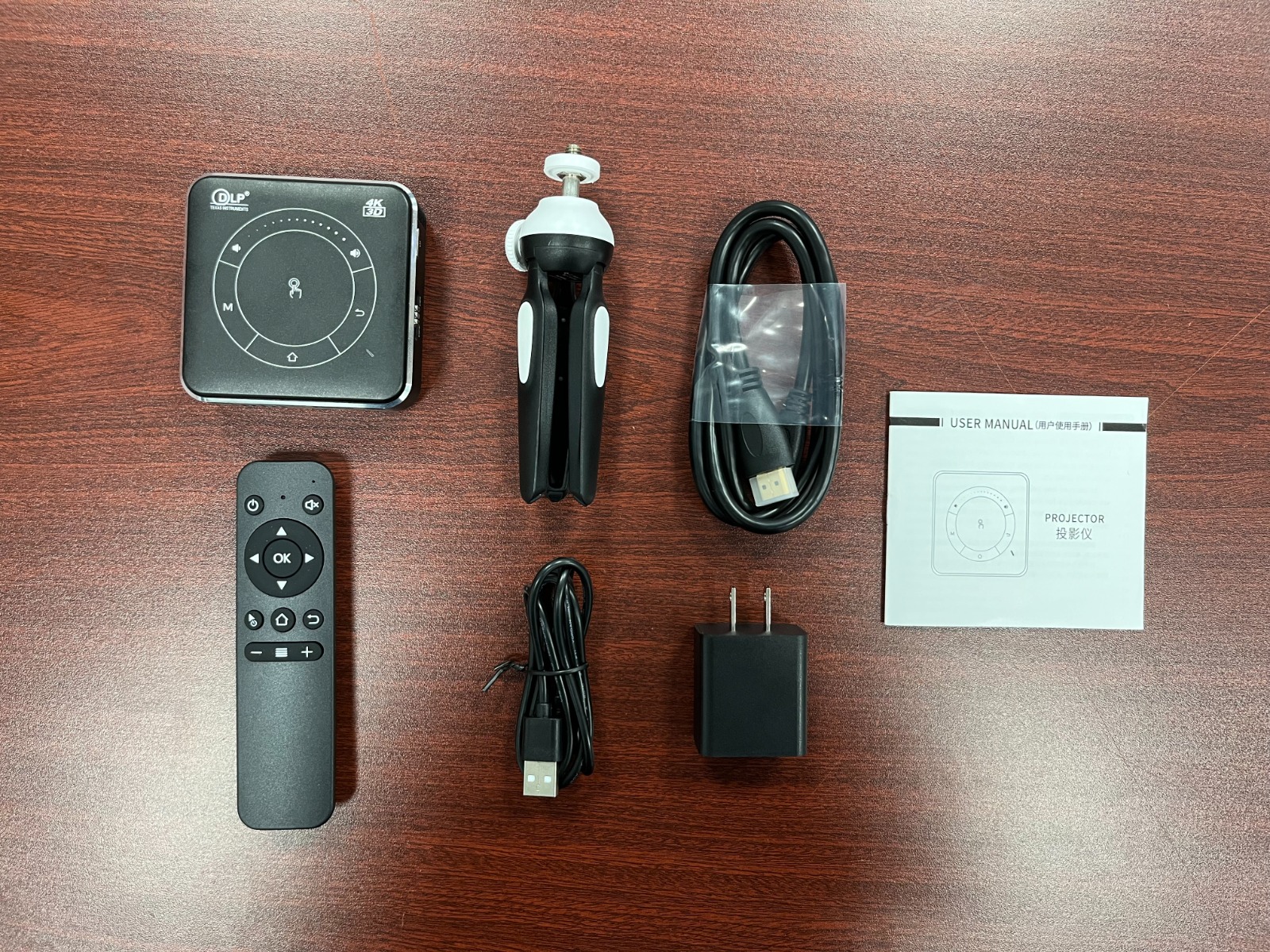

| Package |
| Colour |
Gray(2GB+16GB) / Black(4GB+32GB) |
| Net weight |
188g |
| Dimension |
80*80*28mm |
| Gift Box weight |
580g |
| Gift Box Size |
145.5*105*84mm |
| Carton box weight |
"6.14kg (10pcs) / 12.1kg (20pcs)" |
| Carton box size |
"445*165*230mm (10pcs) / 445*310*225mm (20pcs)" |
