| model |
P12-II |
| product description |

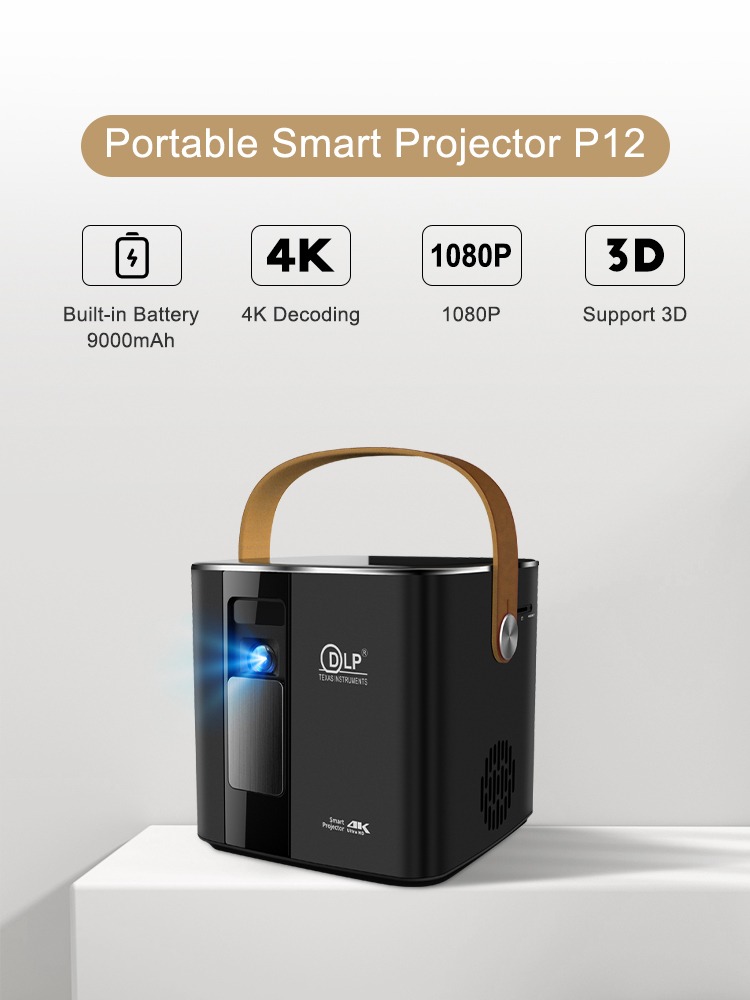

DLP projector |
| picture |
 |
| Projection Specification |
| Projection Technology | DLP(0.23"1080P DMD) |
| Projection Light | RGB LED OSRAM Q6 |
| Light Life | Up to 20,000 hours |
| Light Luminance | 200 Lumens |
| Light Type | LED |
| Standard Resolution | 1920*1080 |
| Projection Area | 2/6/1900 |
| Contrast | 1000:1 |
| Projection Ratio | 1.2:1（37.8 inch@1M） |
| Distortion | <1.5％ |
| Luminance Uniformity | 90% |
| Projection Distance | 1-8m |
| Aspect Ratio | 16:9 |
| Focus mode | 1/3/1900 |
| Keystone Correction | Vertical ±45 degree, Horizontal ±40 degree, Multi angle adjustment |
| Offset function | 100% |
| 3D | YES |
| system parameters |
| Screen Mirror | Eshare/iMirror/MiraCast |
| OS | Android 9.0 |
| CPU | T972 (Amlogic) |
| Basic Frequency | Quad Core ARM Cortex-A55 CPU |
| GPU | ARM Mali-G31 MP2 GPU |
| Buffer Memory | 2GB LPDDR4 |
| Memory | 16GB EMMC |
| WIFI | 2.4G/5G 802.11a/b/g/n/ac |
| Bluetooth | BT 4.2 |
| Basic parameters |
| Built-in Battery | 9000MA |
| Usage time | work for about 80 minutes |
| Video Support (up to 4K) | VP9-10, H.265, H.264, MPEG-4, WMV/VC-1, MPEG-2, MPEG-1, RealVideo 8/9/10 etc. |
| Audio Support | MP3, WMA, MP2, OGG, AAC, M4A, MA4, FLAC, APE, 3GP, WAV |
| Image Support | Supports variety of image formats browsing (jpg, png, bmp etc.) |
| Extended Storage | Support TF Card and Hard Disk |
| Remote Control | Support IR Remote |
| Built-in speaker | two 3w speaker |
| Light machine Consumption | 19W |
| Whole Power Consumption | 35W |
| Power Performance | AC100-240V, 50/60Hz, DC 12V 4A |

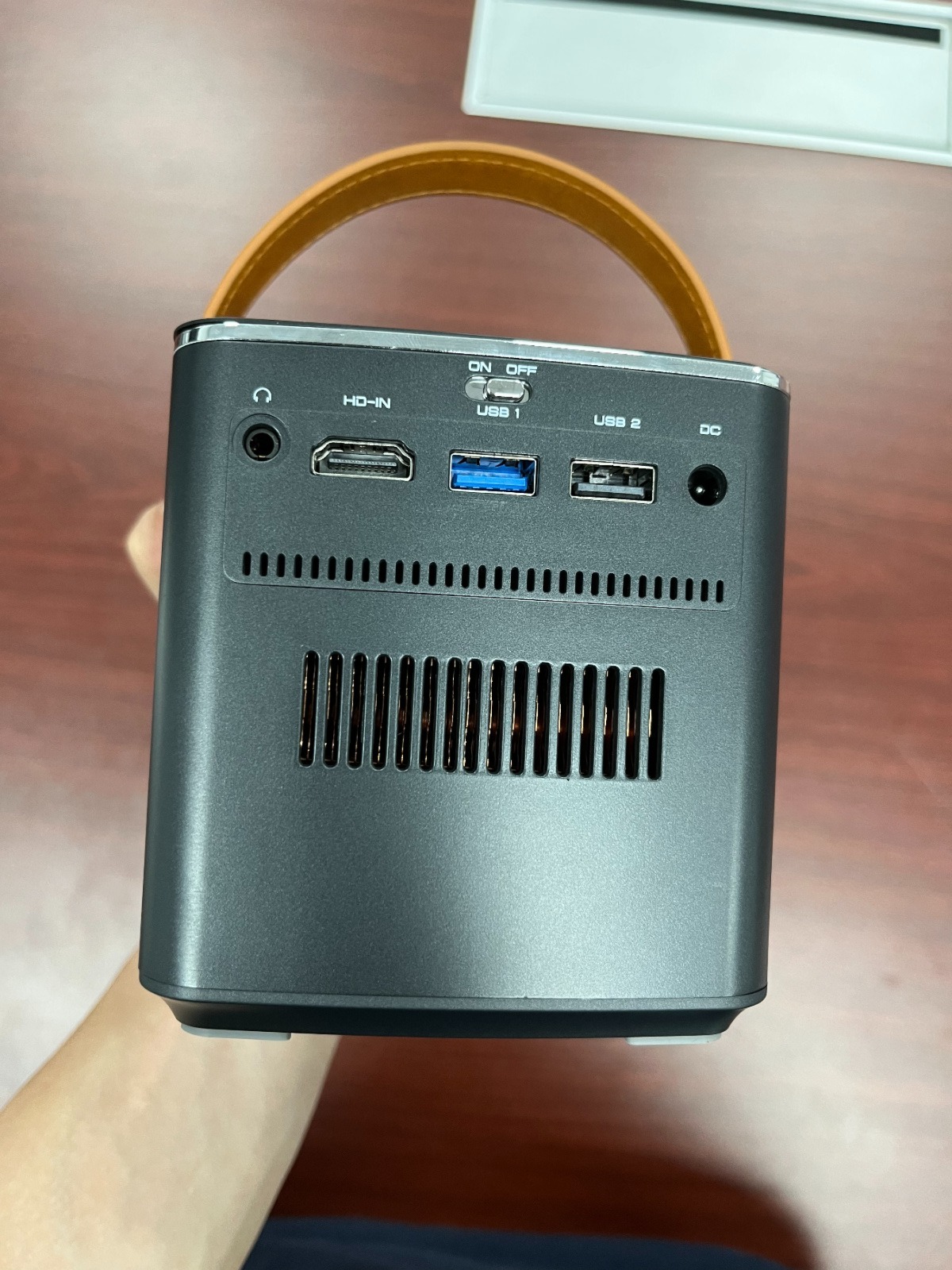

| Interface |
1* DC input: DC 12V 4A |
| 1*TF Card: Max 128GB |
| 1*HDMI: HDMI2.1 Input |
| 1*USB host + 1*USB OTG (HOST 2.0) |
| 1*Earphone: Audio output, 3.5mm joint (can connect with earphone or speaker box) |

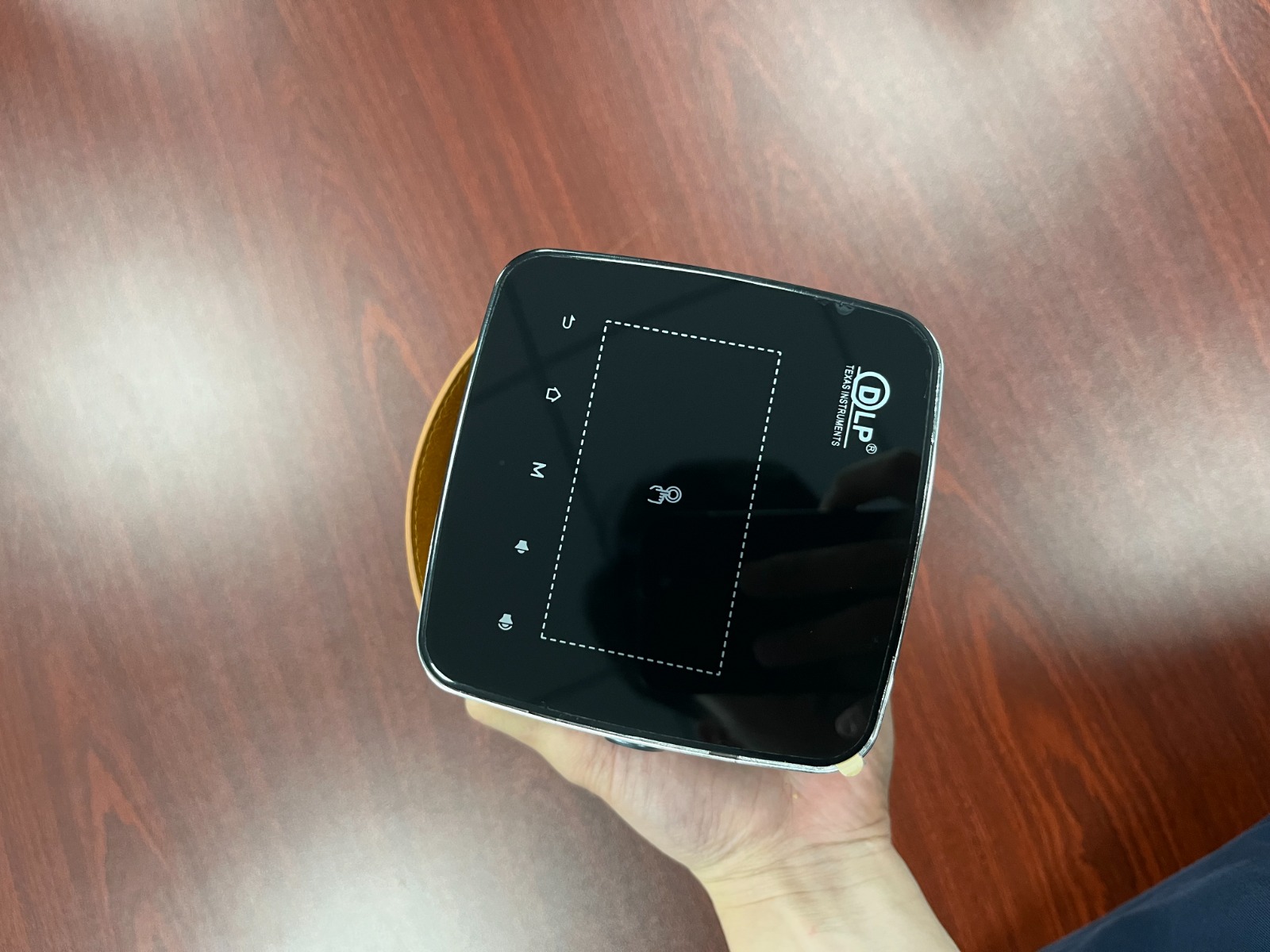

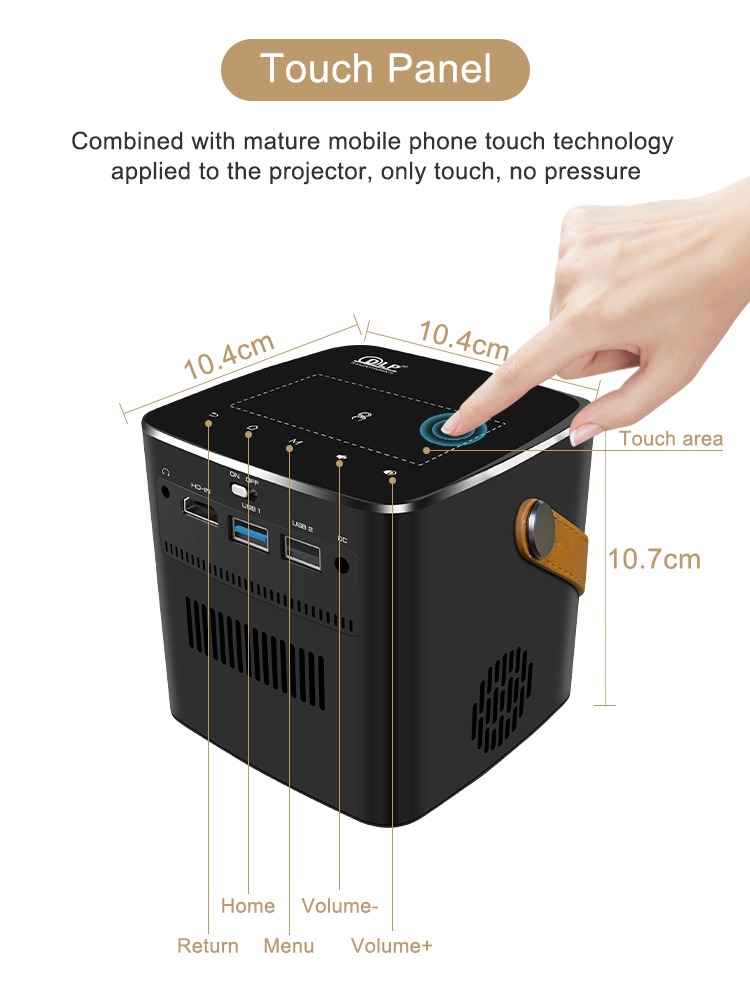

| 1*TouchPAD |

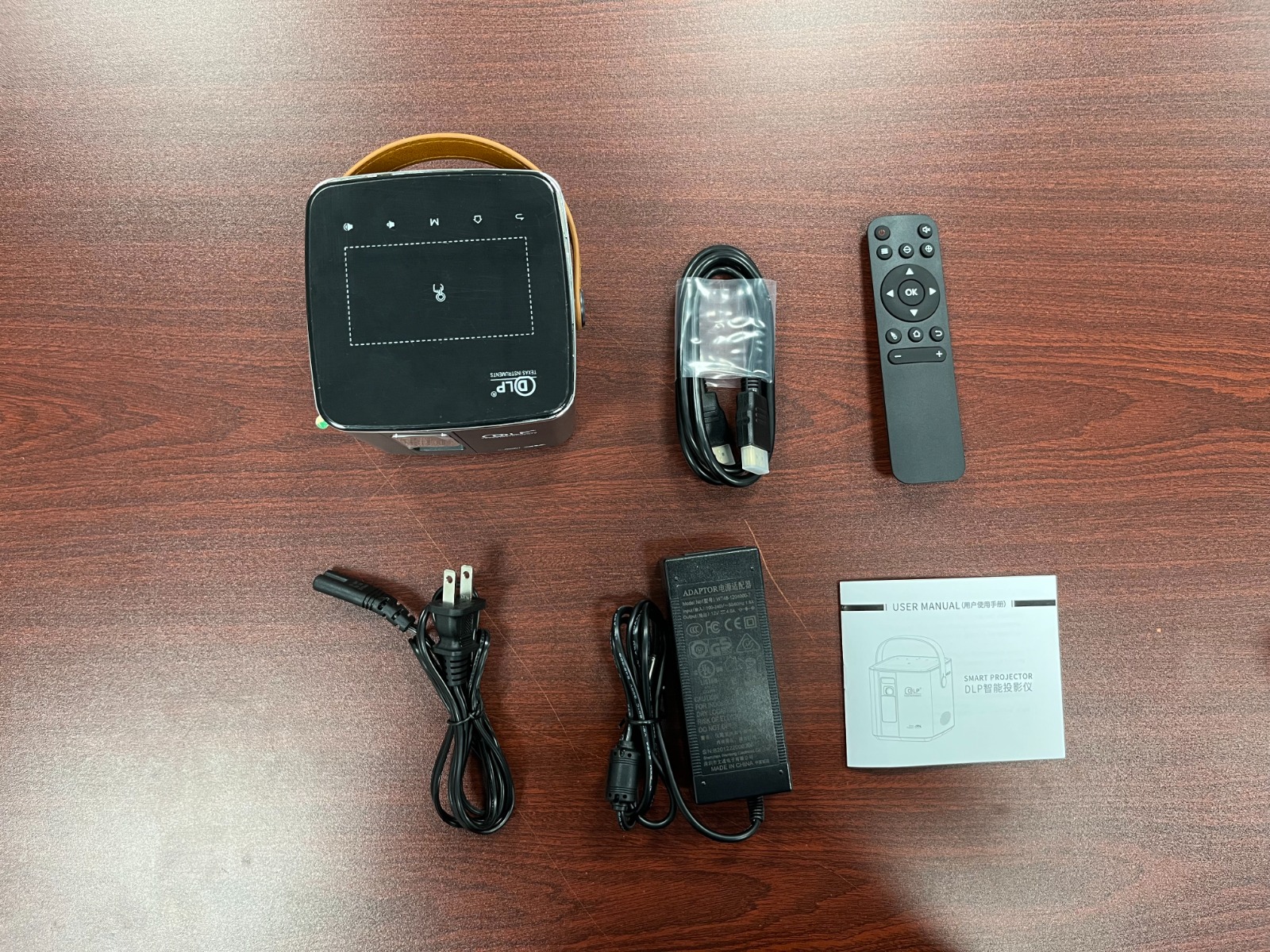

| package |
| Colour | Black |
| Dimension | 111*104*106mm |
| Net weight | 711.43g |
| Gift Box weight | 1480g |
| Gift Box Size | 210*145*110mm |
| Carton box size | 485*240*255mm (6pcs) |
| Carton box weight | 9.58kg |
