| model |
P18-II |
| product description |

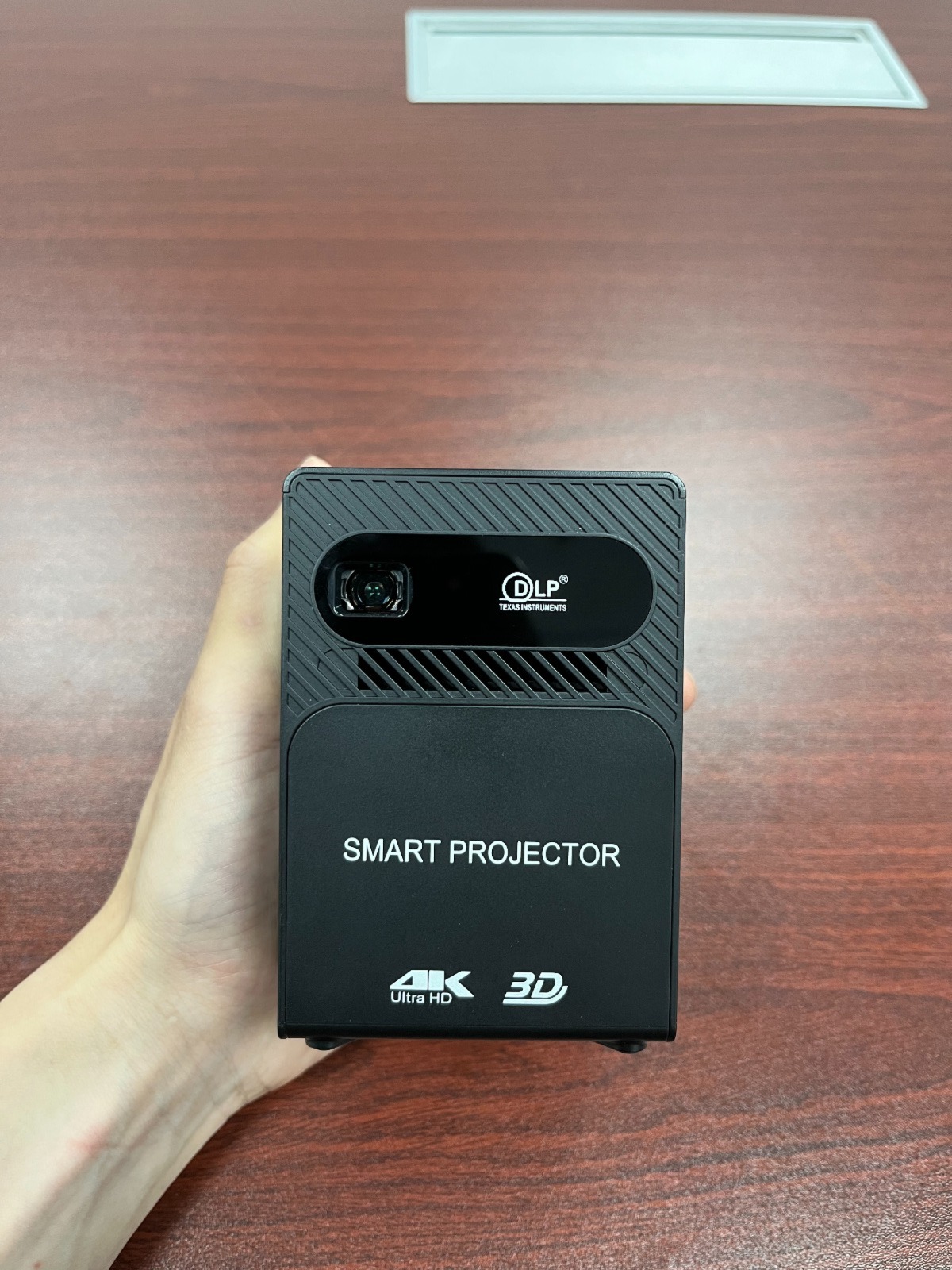

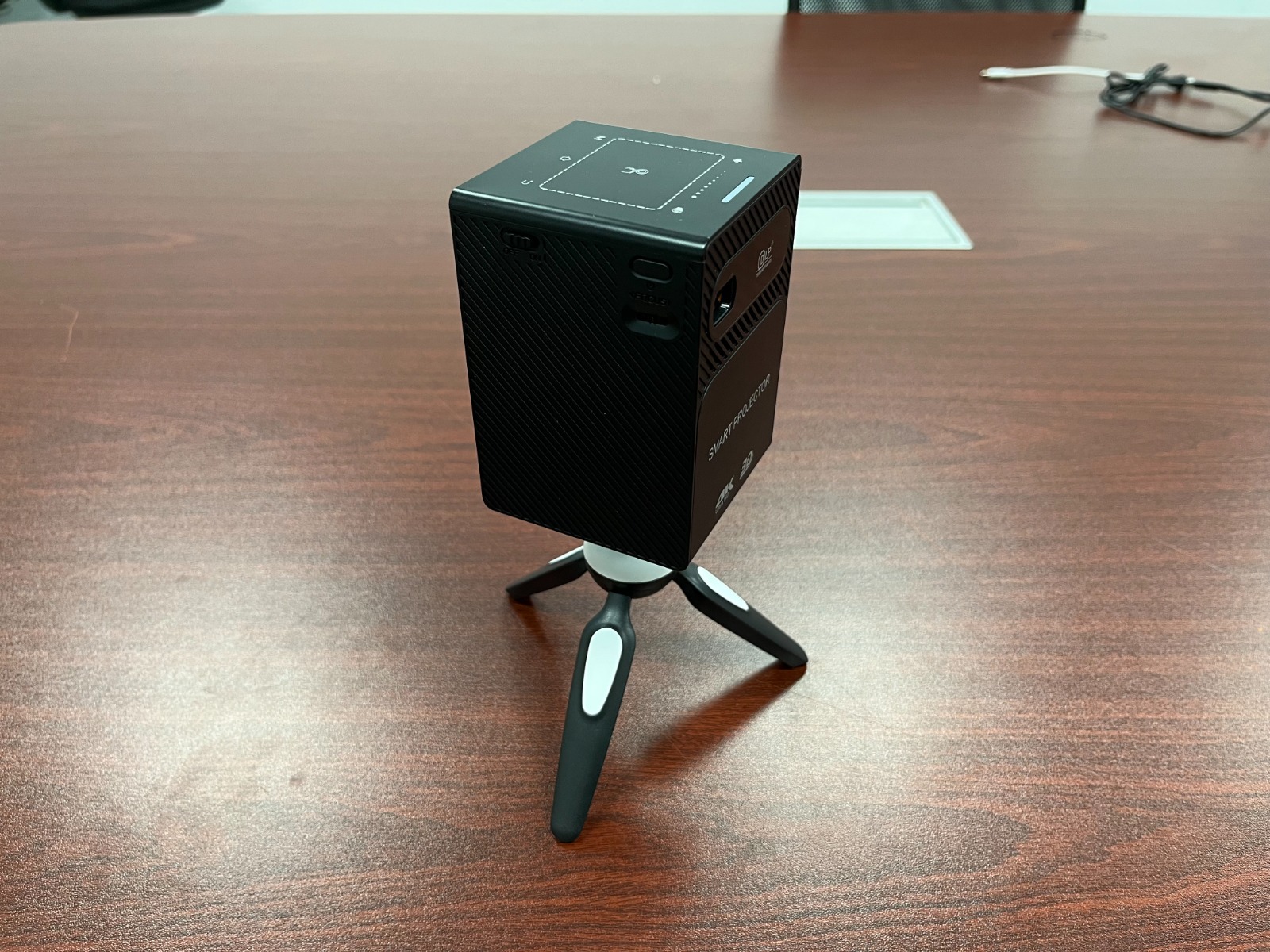

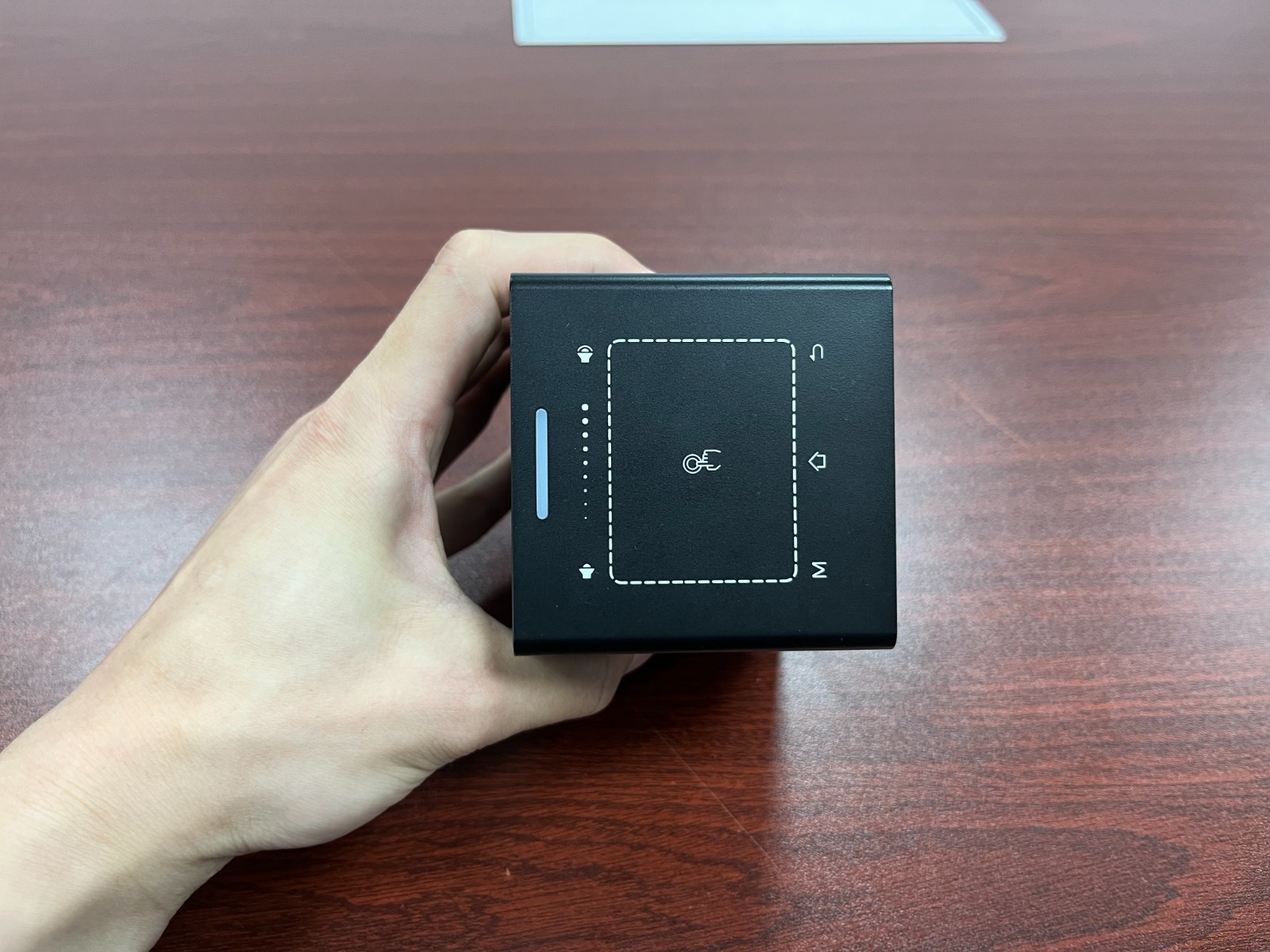

DLP Mini Pocket projector |
| picture |
 |
| Projection Specification |
| Projection Technology |
DLP(0.2"DMD) |
| Projection Light |
RGB LED OSRAM Q6 |
| Light Life |
Up to 20,000 hours |
| Light Luminance |
100 Lumens |
| Light Type |
LED |
| Standard Resolution |
WVGA 854*480 |
| Projection Area |
30-120 inch |
| Contrast |
500:1 |
| Projection Ratio |
1.35:1(33.5"@1m) |
| Distortion |
<1.0％ |
| Luminance Uniformity |
>85% |
| Projection Distance |
1-5m |
| Aspect Ratio |
16:9 |
| Focus mode |
Manual focus |
| Keystone Correction |
Vertical ±40 degree,Horizontal ±45 degree,Multi angle adjustment |
| Projector Character |
Interaction |
| Projection Mode |
Front Projection |
| Offset function |
No |
| 3D |
Yes |
| System Parameters |
| Screen Mirror |
Airplay/MiraCastt |
| OS |
Android 9.0 |
| CPU |
T972(Amlogic) |
| Basic Frequency |
Quad Core ARM Cortex-A55 CPU |
| GPU |
ARM Mali-G31 MP2 GPU |
| Buffer Memory |
2GB/4GB LPDDR4 |
| Memory |
32GB/64GB EMMC |
| WIFI |
2.4G/5G |
| Bluetooth |
BT 4.2 |
| Basic parameters |
| Built-in Battery |
4000mAh 3.7V*2 |
| Usage time |
work for about 3.5 hours |
| Video Support(up to 4k) |
VP9-10,H.265,H.264,MPEG-4,WMV/VC-1,MPEG-2,MPEG-1,RealVideo 8/9/10 etc. |
| Audio Support |
MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
| Image Support |
Supports variety of image formats browsing (jpg, png, bmp etc.） |
| Extended Storage |
Support TF Card and Hard Disk |
| Remote Control |
support IR receive |
| Built-in speaker |
one 3W speaker |
| Light machine Consumption |
6W |
| Whole Power Consumption |
19W |
| Power Performance |
AC100-240V，50/60Hz DC 12V 2A |
| Interface |
1*TF Card: Max 32GB |
| 1*HDMI: HDMI Input 1.4 |
| 1*USB: USB 2.0 Support USB hard disk data read |
| 1*Earphone: Audio output, 3.5mm joint (can connect with earphone or speaker box) |
| IR Remote |
| 1* DC input: DC 12V 2A |

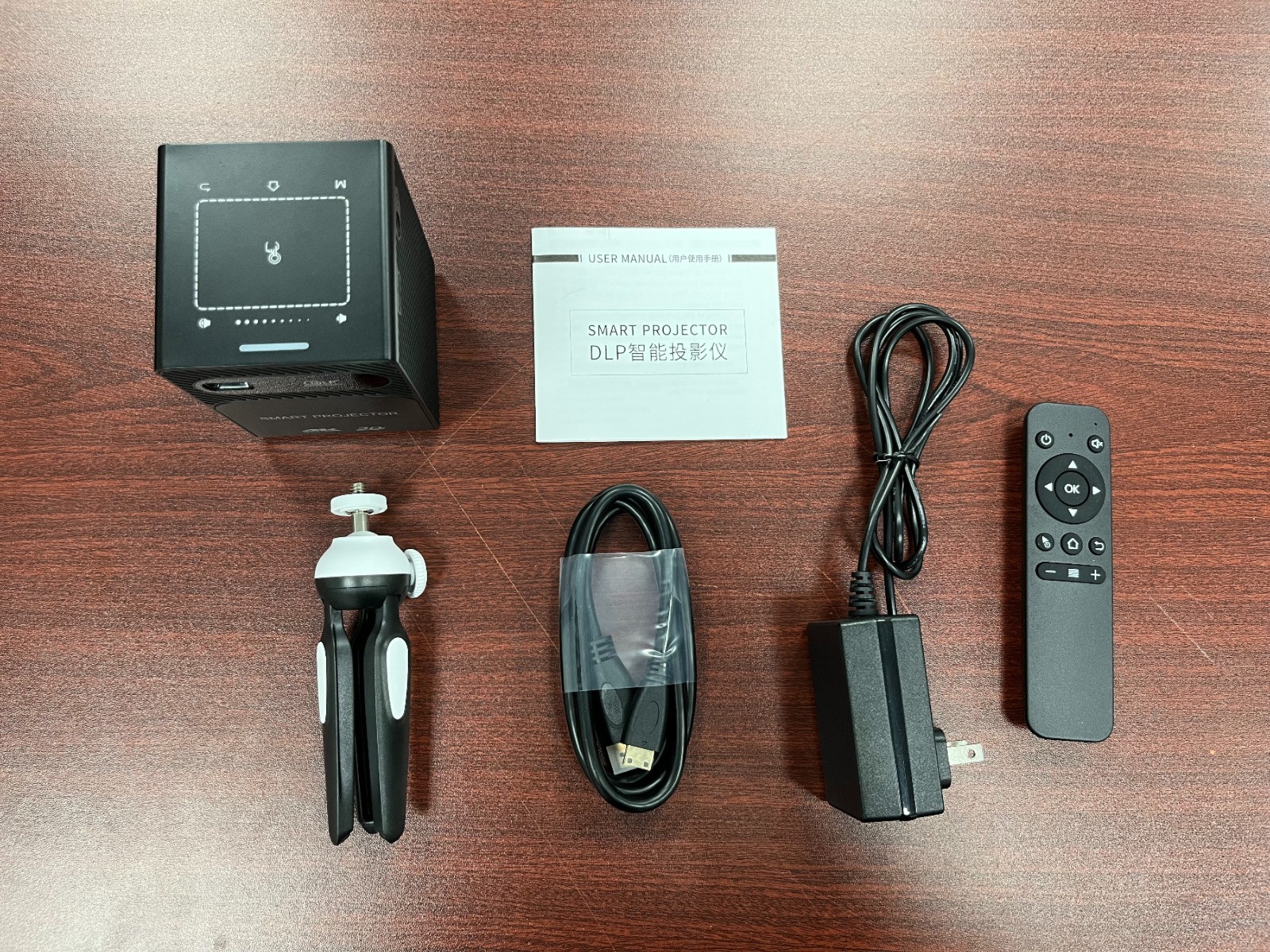

| Package |
| Colour |
GRAY / BLACK |
| Net weight |
388g |
| Dimension |
7*7*10.4cm |
| Gift Box weight |
889g |
| Gift Box Size |
17.6*14*8.4cm |
| Carton box weight |
9kg (10pcs) / 18kg (20pcs) |
| Carton box size |
47.5*20*31.5cm (10pcs) / 47.5*38.5*31.5cm (20pcs) |
