| model | P09-II | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

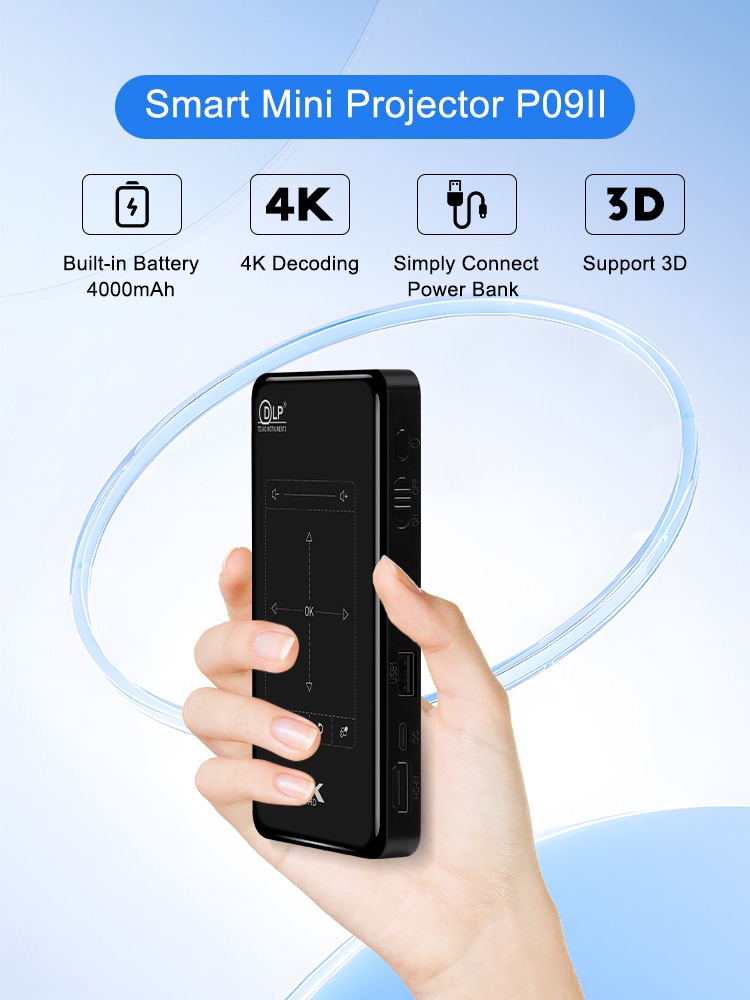

| product description | DLP Mini Pocket projector | ||||||||||

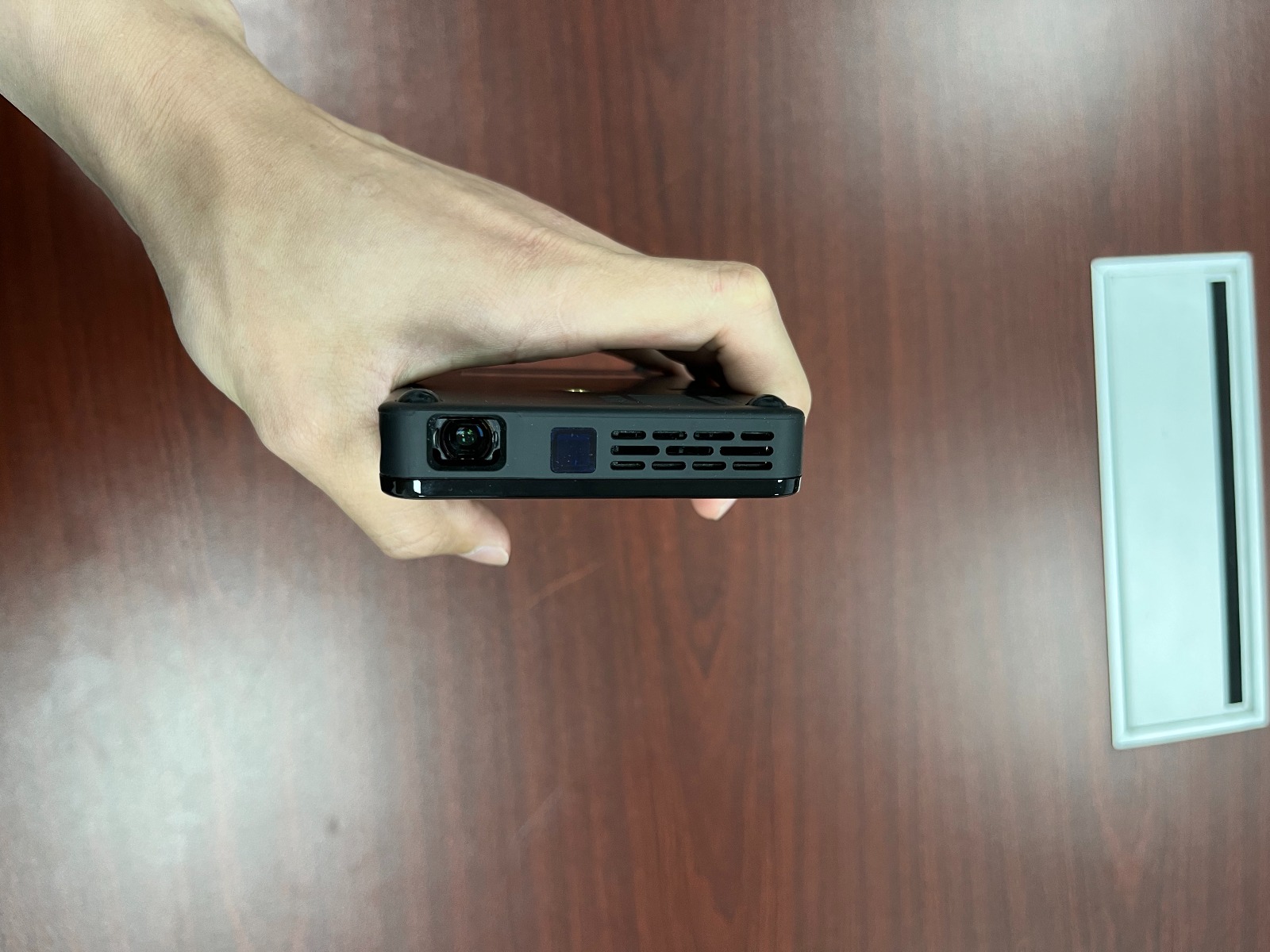

| picture | |
||||||||||
| Projection Specification | |||||||||||
| Projection Technology | DLP(0.2"DMD) | ||||||||||
| Projection Light | RGB LED OSRAM Q6 | ||||||||||
| Light Life | Up to 20,000 hours | ||||||||||
| Light Luminance | 65 Lumens | ||||||||||
| Light Type | LED | ||||||||||
| Standard Resolution | WVGA 854*480 | ||||||||||
| Projection Area | 30-120 inch | ||||||||||
| Contrast | 500:1 | ||||||||||
| Projection Ratio | 1.35:1(33.5"@1m) | ||||||||||
| Distortion | <1.0％ | ||||||||||
| Luminance Uniformity | >85% | ||||||||||
| Projection Distance | 1-5m | ||||||||||
| Aspect Ratio | 16:9 | ||||||||||
| Focus mode | Manual focus | ||||||||||
| Keystone Correction | Vertical ±40 degree,Horizontal ±45 degree,Multi angle adjustment | ||||||||||
| Projector Character | Interaction | ||||||||||
| Projection Mode | Front Projection | ||||||||||
| Offset function | NO | ||||||||||
| 3D | YES | ||||||||||
| System Parameters | |||||||||||
| Screen Mirror | Airplay/MiraCast | ||||||||||
| OS | Android 9.0 | ||||||||||
| CPU | T972(Amlogic) | ||||||||||
| Basic Frequency | Quad Core ARM Cortex-A55 CPU | ||||||||||
| GPU | ARM Mali-G31 MP2 GPU | ||||||||||
| Buffer Memory | 1GB/2GB LPDDR4 | ||||||||||
| Memory | 8GB/32GB EMMC | ||||||||||
| WIFI | 2.4G/5G | ||||||||||
| Bluetooth | BT 5.2 | ||||||||||
| Basic parameters | |||||||||||
| Built-in Battery | 4000mAh 3.7V 14.8Wh | ||||||||||
| Usage time | work for about 2 hours | ||||||||||
| Video Support(up to 4k) | VP9-10,H.265,H.264,MPEG-4,WMV/VC-1,MPEG-2,MPEG-1,RealVideo 8/9/10 etc. | ||||||||||
| Audio Support | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV | ||||||||||
| Image Support | Supports variety of image formats browsing (jpg, png, bmp etc.） | ||||||||||
| Extended Storage | Support TF Card and Hard Disk | ||||||||||
| Remote Control | Support（IR) Infrared and 2.4G wireless control | ||||||||||
| Built-in speaker | one 1W speaker | ||||||||||
| Light machine Consumption | 3W | ||||||||||
| Whole Power Consumption | 8W | ||||||||||
| Power Performance | AC100-240V，50/60Hz DC 5V 3A | ||||||||||

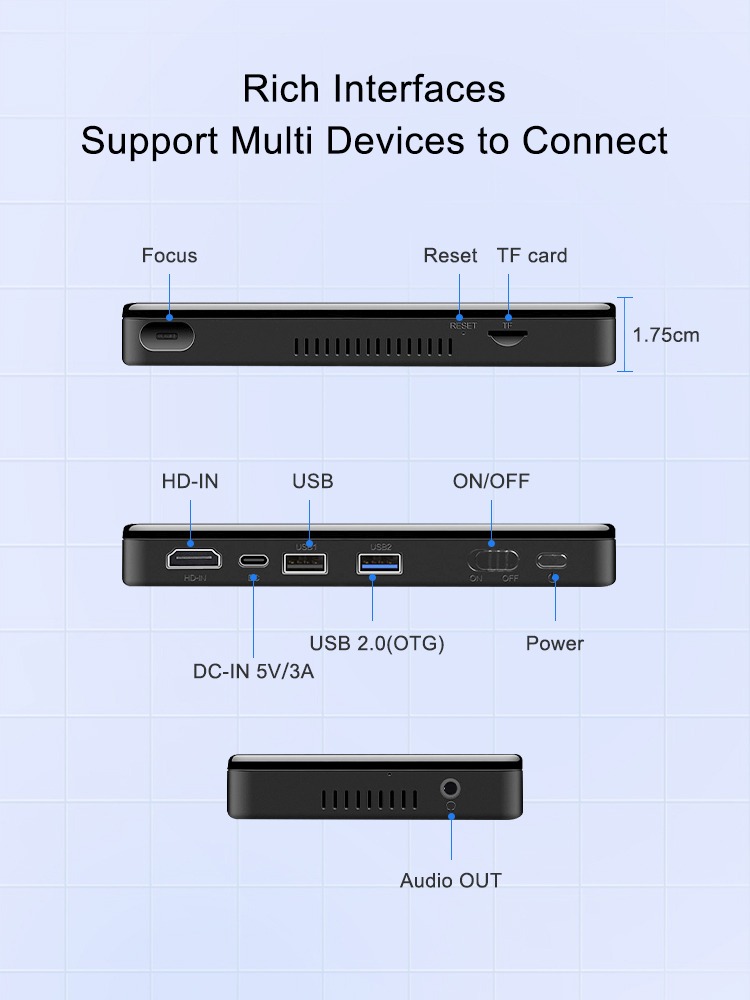

| Interface | 1*TF Card: Max 32GB | ||||||||||
| 1*HDMI: HDMI Input 1.4 | |||||||||||
| 2*USB: USB 2.0*1，USB 3.0*1 Support USB hard disk data read | |||||||||||
| 1*Earphone: Audio output, 3.5mm joint (can connect with earphone or speaker box) | |||||||||||
| IR Remote | |||||||||||
| 1* DC input: DC 5V 3A | |||||||||||

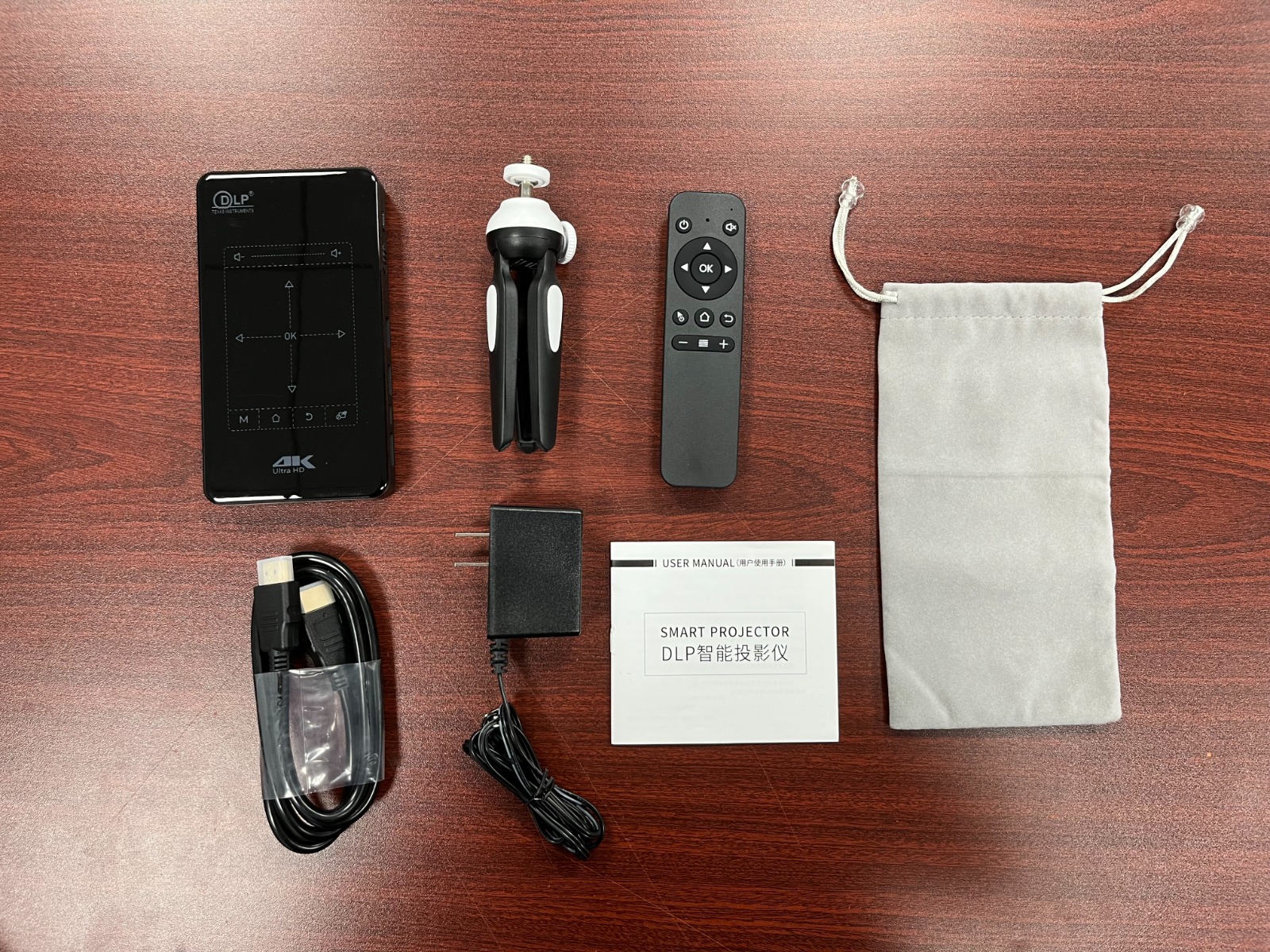

| Package | |||||||||||
| Colour | Black | ||||||||||
| Net weight | 206g | ||||||||||

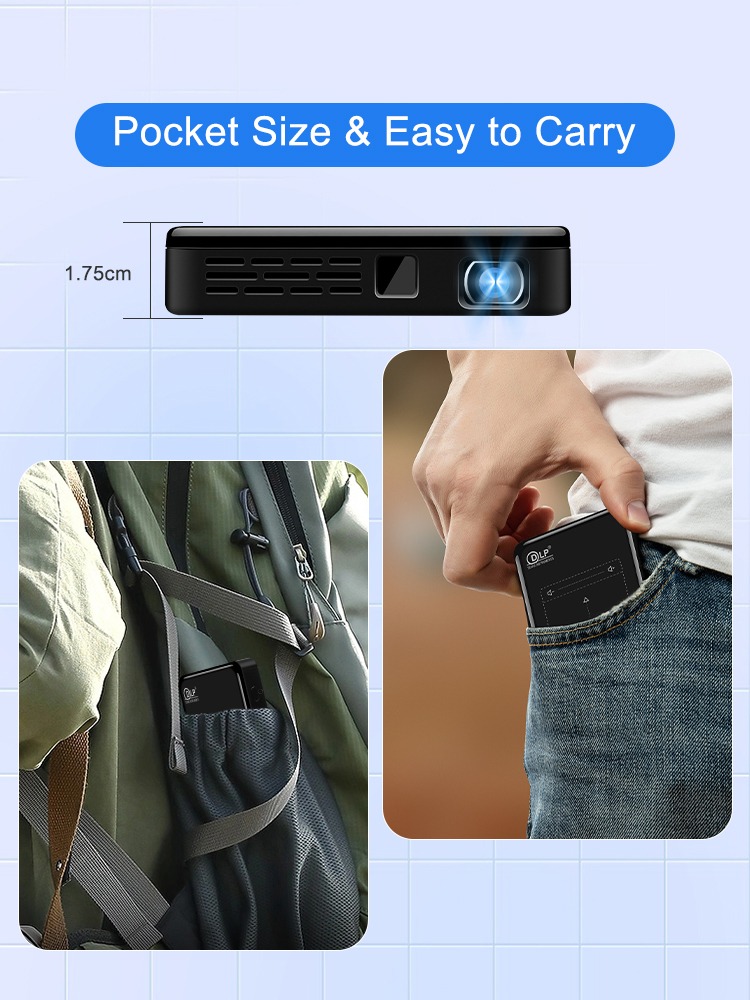

| Dimension | 14.5x8x1.75cm | ||||||||||
| Gift Box weight | 669g | ||||||||||
| Gift Box Size | 17.3x11.7x8cm | ||||||||||
| Carton box weight | "7kg(10pcs) 14kg (20pcs)" | ||||||||||
| Carton box size | "44.5x18.5x26cm (10pcs)
44.5x36x26cm (20pcs)" |
||||||||||
